Using luna 2496 io with hotter input signals than -10dbv

An area for people to discuss Scope related problems, issues, etc.

Moderators: valis, garyb

Post Reply
MCCY
Posts: 1208
Joined: Sun Mar 25, 2001 4:00 pm
Location: Germany

Using luna 2496 io with hotter input signals than -10dbv

Post by MCCY »

Hi!
I want to make drum-recordings with luna 2496 io using microphon preamps with higher output signals than -10dbv. I get distorted signals from basedrum/snare mics, when preamp is set to lowest value possible.
Is it that easy, to build a pad:

http://www.uneeda-audio.com/pads/

So I'd make the L-shematic with R1 = 10k & R2 = 3.6k

<= ------ 10 k -------<=
I
3,6 k
I
<= --------------------<=


Will this effect soundquality?

... and the next quesion: Is a certain kind of resistors better for soundquality than the other?

Thanks

Martin
MCCY
Posts: 1208
Joined: Sun Mar 25, 2001 4:00 pm
Location: Germany

Re: Using luna 2496 io with hotter input signals than -10dbv

Post by MCCY »

I ordered the parts & let you know, how it works.
User avatar
the19thbear
Posts: 1499
Joined: Thu Feb 20, 2003 4:00 pm
Location: Denmark
Contact:

Re: Using luna 2496 io with hotter input signals than -10dbv

Post by the19thbear »

Are you sure that its not you mic preamp that is overloaded? Normally you pad the signal before the mic preamp. With a kick and snare it very easy to overload preamps.
MCCY
Posts: 1208
Joined: Sun Mar 25, 2001 4:00 pm
Location: Germany

Re: Using luna 2496 io with hotter input signals than -10dbv

Post by MCCY »

Some devices need -10dbv (consumer) others +4dbu (pro). So it can be read in many places. I believe, Luna 2496 io is pro, because it sounds very good, but I have problems, connecting a preamp with high output. The preamp itself does not overload (shows nothing like that & it's no problem with A16 inputs). I hope this little pad-trick will work. We'll see. It's not too much money invested for some resistors.
User avatar
garyb
Moderator
Posts: 23377
Joined: Sun Apr 15, 2001 4:00 pm
Location: ghetto by the sea

Re: Using luna 2496 io with hotter input signals than -10dbv

Post by garyb »

a Luna is -10db consumer line level.

+4 professional line level is just about always balanced.
-10 or -20 is almost always unbalanced.

both should sound pretty much the same.
MCCY
Posts: 1208
Joined: Sun Mar 25, 2001 4:00 pm
Location: Germany

Re: Using luna 2496 io with hotter input signals than -10dbv

Post by MCCY »

Soldering PAD-cables right now. IT WORKS as I expected. Drums through modded SM pre8E into LUNA 2496 IO don't clip any more. Cool setup this is now. I got 3 LUNA 2496 IO for so damn cheap on ebay & now I can use them in any setup! They sound VERY good (as to be expected with creamware gear) :-).
MCCY
Posts: 1208
Joined: Sun Mar 25, 2001 4:00 pm
Location: Germany

Re: Using luna 2496 io with hotter input signals than -10dbv

Post by MCCY »

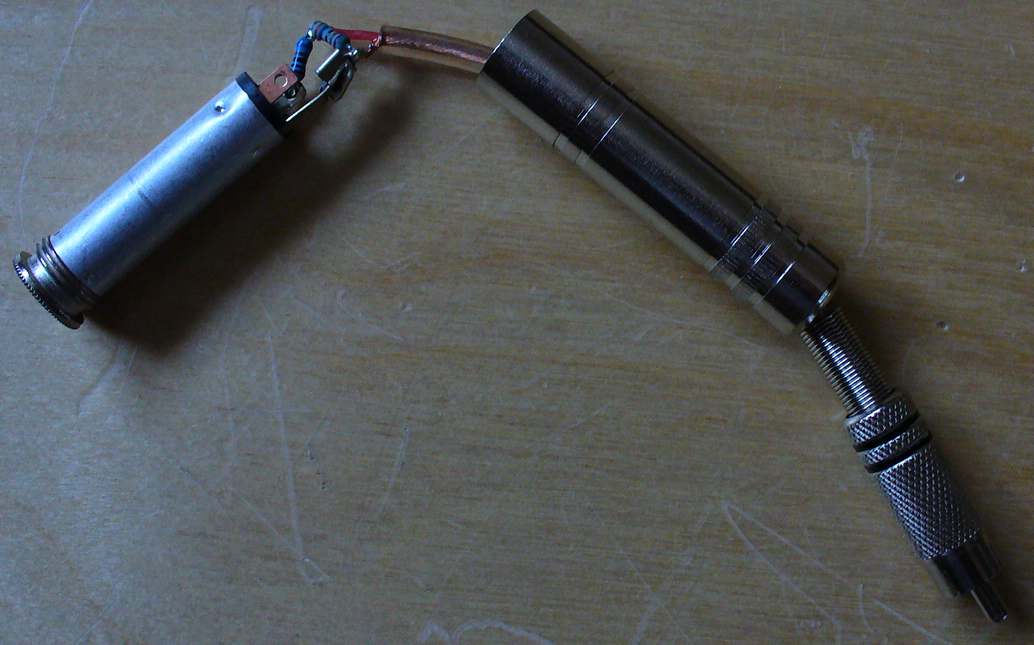

It looks like this:
Attachments
User avatar
garyb
Moderator
Posts: 23377
Joined: Sun Apr 15, 2001 4:00 pm
Location: ghetto by the sea

Re: Using luna 2496 io with hotter input signals than -10dbv

Post by garyb »

those should work.


you do realize that the Luna 1/4" jacks are stereo, right? if so, i apologize for pointing out the obvious. :)
MCCY
Posts: 1208
Joined: Sun Mar 25, 2001 4:00 pm
Location: Germany

Re: Using luna 2496 io with hotter input signals than -10dbv

Post by MCCY »

I'm using the break out box Luna 2496 io. So mono-klinke to mono cinch. 2 resistors as described above.
It's the other way round: cinch goes to Luna 2496io, 6,3 Klinke Buchse goes to mic-preamp (using Pr8e asym or Tascam MA 8 which is not symmetrical anyway). I'm using the Stereo Input because they were cheaper than mono :-).
MCCY
Posts: 1208
Joined: Sun Mar 25, 2001 4:00 pm
Location: Germany

Re: Using luna 2496 io with hotter input signals than -10dbv

Post by MCCY »

Today tested old Scope-Computer with 11 dsps for Mixing my Music class with 18 channels (15 microphones & 1 bass DI & 2 mono Keyboards). It works FANTASTIC!!! I used my eeepc via VNC with network cable to stand in the middle of the big hall and remote control the scope computer to mix the whole thing.

Tomorrow is the concert & I'm looking forward hearing a great sounding system with my great playing music class.

SCOPE4LIVE!!! :-)
MCCY
Posts: 1208
Joined: Sun Mar 25, 2001 4:00 pm
Location: Germany

Re: Using luna 2496 io with hotter input signals than -10dbv

Post by MCCY »

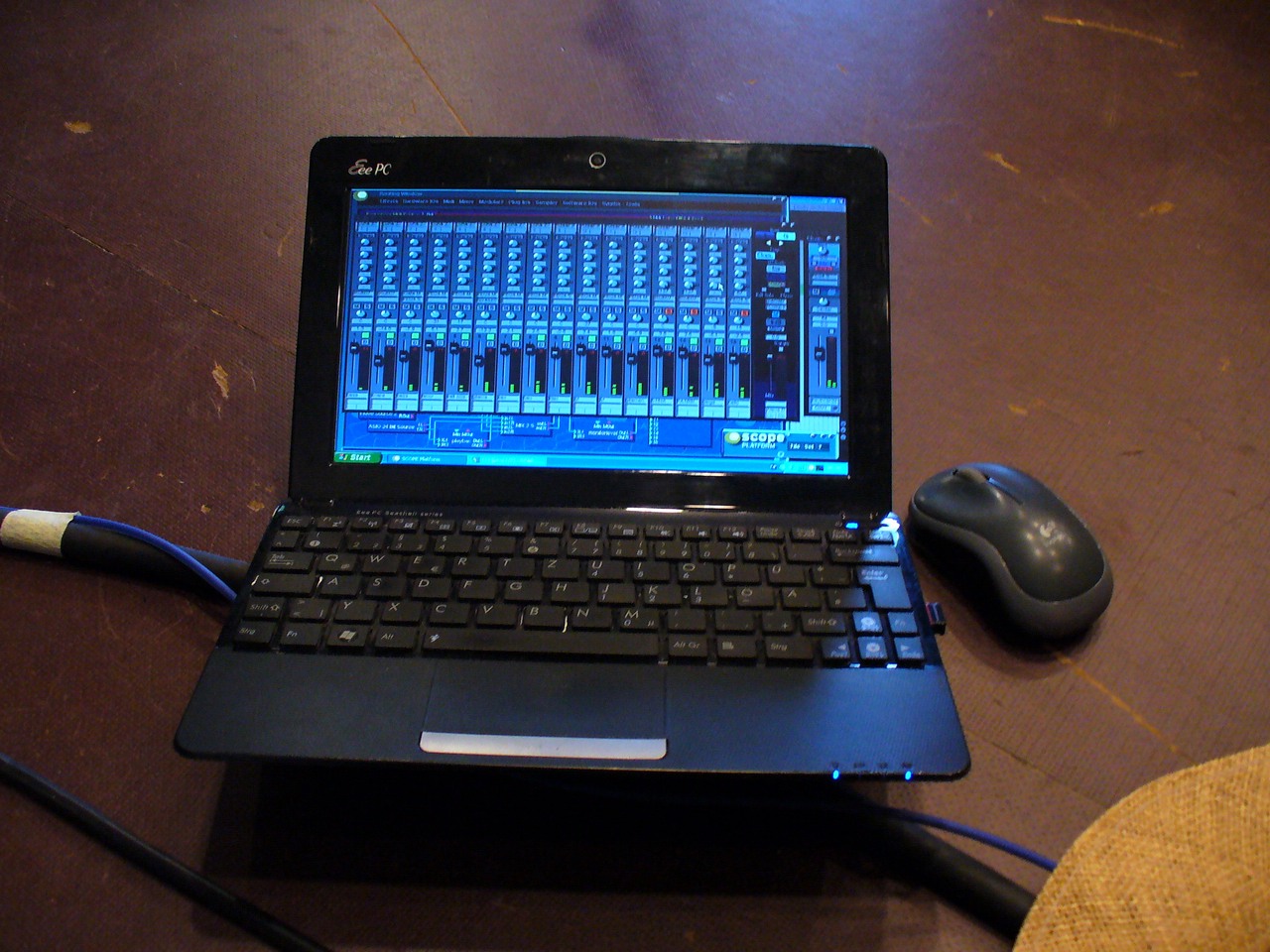

scope on eee PC :-) (via VNC)
Attachments
User avatar
dante
Posts: 5045
Joined: Sat Nov 24, 2001 4:00 pm
Location: Melbourne Australia
Contact:

Re: Using luna 2496 io with hotter input signals than -10dbv

Post by dante »

Thats pretty cool, remote controlling Scope PCI from laptop. You got any more pictures for Scoperise ?

eg of the PC racked with the Luna I/O box and the concert hall with performing musicians and cheering fans ?
babaorum
Posts: 335
Joined: Tue Dec 20, 2005 4:00 pm
Contact:

Re: Using luna 2496 io with hotter input signals than -10dbv

Post by babaorum »

What is VNC ? how is it possible to control with a laptop ? :o
Sonic Core Luna II + Pulsar II scope v5.1.2709-x64, Cubase 9.0.20 (64), Pro Tools 12.7, Wavelab element 9 (64), windows 8.1 pro (64), Asus P6T 18Go RAM core i7 920, SSL Duende Native - Lexicon PCM Reverb Bundle - Waves - Sonnox
User avatar
dante
Posts: 5045
Joined: Sat Nov 24, 2001 4:00 pm
Location: Melbourne Australia
Contact:

Re: Using luna 2496 io with hotter input signals than -10dbv

Post by dante »

VNC is just a remote control PC app where the laptop takes over the screen and mouse of the PC.

So the Scope mixer seen on the laptop is actually running on the PC.

http://www.realvnc.com/
User avatar
garyb
Moderator
Posts: 23377
Joined: Sun Apr 15, 2001 4:00 pm
Location: ghetto by the sea

Re: Using luna 2496 io with hotter input signals than -10dbv

Post by garyb »

you can use remote desktop, which is built into windows, too.
