Wrong/bad aquisition?

A place to talk about whatever Scope music/gear related stuff you want.

Moderators: valis, garyb

User avatar
hifiboom
Posts: 2057
Joined: Thu Aug 03, 2006 4:00 pm
Location: Germany, Munich
Contact:

Post by hifiboom »

hubird wrote:now he's really starting to pull his hair out :lol:
:lol:
User avatar
hifiboom
Posts: 2057
Joined: Thu Aug 03, 2006 4:00 pm
Location: Germany, Munich
Contact:

Post by hifiboom »

oh, sorry, I forgot to say:

Emu cards are crap! (IMO)
User avatar
bassdude
Posts: 1004
Joined: Tue Jul 24, 2001 4:00 pm
Location: ACT, Australia

Post by bassdude »

phobik, totally understand what you are saying and yes the scope card is very powerful but not something I would recommend for quick and easy setup "toying around". If you can find a cheap little behringer mixer then you will certainly be able to use it for what you want but you will need to get familiar with how scope works.
Stuart.
User avatar
hifiboom
Posts: 2057
Joined: Thu Aug 03, 2006 4:00 pm
Location: Germany, Munich
Contact:

Post by hifiboom »

bassdude wrote:phobik, totally understand what you are saying and yes the scope card is very powerful but not something I would recommend for quick and easy setup "toying around". If you can find a cheap little behringer mixer then you will certainly be able to use it for what you want but you will need to get familiar with how scope works.
Well said!
A good recommendation....






User avatar
bassdude
Posts: 1004
Joined: Tue Jul 24, 2001 4:00 pm
Location: ACT, Australia

Post by bassdude »

:D

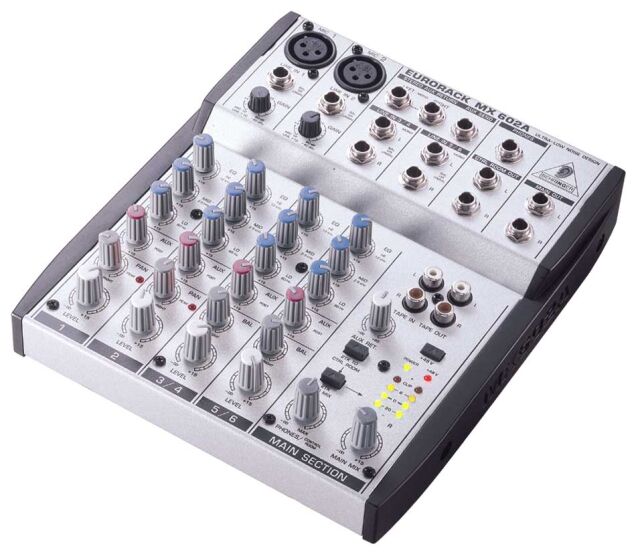

But seriously try this:-
Attachments
Stuart.
User avatar
garyb
Moderator
Posts: 23378
Joined: Sun Apr 15, 2001 4:00 pm
Location: ghetto by the sea

Post by garyb »

oh, no! $50 is toooo much.....
phobik
Posts: 15
Joined: Thu May 10, 2007 9:00 pm

Post by phobik »

garyb wrote:oh, no! $50 is toooo much.....
*Nods* :P

But I mite try the DIY area, looks like it can save alot. Anyone knows of a DIY for a AD/DA converter for the ADAT pluggs? :D
User avatar
astroman
Posts: 8455
Joined: Fri Feb 08, 2002 4:00 pm
Location: Germany

Post by astroman »

yes, you can indeed save a lot of cash with some DIY if you consider the 'raw' material costs - but time and making of printed circuit boards can't be neglected...
In that sense you might start with tube technology using point to point wiring - avoid high voltage layouts for the beginning, tho ;)

Before thinking DIY multichannel converters take a comfortable seat - you cannot even beat Behringer and there's at least one product (with less features) for about half that price (dunno it's quality) afaik.
An Adat with worn out drive is the only thing below $100 - it looks cute with all it's meters, but it's a bit bulky ;)

cheers, Tom
ps regarding pre-amps:
my 'main' bass is serviced to get new pickups, so I used another one I once had aquired because it seemed to be well crafted, but then didn't play it much because I just didn't get along with it's tone.
I can only say I really didn't expect the Radial pre-amp to make SUCH a difference :o
I definetely wouldn't have bought the 2nd bass (which is now modded for almost twice the amount I paid for it...) if I had played the first one through that preamp.
Fortunately both instruments feel and sound completely different, so I don't end with duplicate stuff :D
phobik
Posts: 15
Joined: Thu May 10, 2007 9:00 pm

Post by phobik »

Hmm, gratz on the Radial btw 8)

AFAIK anything with Tubes necessarily needs High Voltage. The point-2-point idea does seem like a good point though :lol:
User avatar
grappa
Posts: 223
Joined: Mon Aug 23, 2004 4:00 pm
Location: In a hard town by the sea....

Post by grappa »

Yes - and its very high DC voltage so one you're stuck to it you're dead.

Don't mess with this sort of thing unles you 'really' know what you are doing.

Simon
User avatar
astroman
Posts: 8455
Joined: Fri Feb 08, 2002 4:00 pm
Location: Germany

Post by astroman »

No - we're talking on the pre-amp side here and there are tons of designs running with 12 to 48V.

Of course (almost) all classical amps from the 'tube era' had (life threatening) 200 to 400V supplies - for simplicity, as it was needed for the power stages anyway.
What do you think is in all those small tube equipped preamp DI and stomp boxes or tube mics ? ;)

Since many tubes contain 2 active elements (f.e. double triode), there are pretty compact designs possible and most of all: no expensive (if available at all...) output transformer is needed in the pre-stages.
Tubes have no 'obscure' behaviour like op-amps which can easily drift into high frequency oscillation due to physical arrangement of parts, something hard to detect without proper gear.

So it's indeed a perfect starting point, additionally rewarding by the prestigous image of those glass-bulbs :D

cheers, Tom
phobik
Posts: 15
Joined: Thu May 10, 2007 9:00 pm

Post by phobik »

So there is no viable DIY design for a AD/DA converter do use those 2 ADAT channels, without spending 300€ ?
User avatar
garyb
Moderator
Posts: 23378
Joined: Sun Apr 15, 2001 4:00 pm
Location: ghetto by the sea

Post by garyb »

for much less than that, you can get a behringer ADA8000. it has 8 channels AD/DA plus 8 mic pres for $230 shipped(us prices).

that's pretty stupid cheap.
User avatar
astroman
Posts: 8455
Joined: Fri Feb 08, 2002 4:00 pm
Location: Germany

Post by astroman »

no way - good converters are expensive in single quantities and are usually SMD parts which require special tools and custom made circuit boards.

this is the cheapest box I know
http://www.thomann.de/gb/sm_pro_audio_ao_8.htm

otherwise an Adat with damaged/worn out tape drive can be found between 40-100 Euro on eBay, but unless you specially like it's 'sound' it doesn't really make sense compared to the box Gary suggests ;)

cheers, Tom
