14 DSP -vs- 15 DSP system
Re: 14 DSP -vs- 15 DSP system
you can look at manufacture dates, but if the card has a z-link, Plus or Classic20 i/o plate, it's almost certainly a 2nd gen card. if iut has a 24ADAT or was converted from a 24ADAT plate, then it's almost certainly a 1st gen card.
- next to nothing
- Posts: 2521
- Joined: Mon Jul 29, 2002 4:00 pm
- Location: Bergen, Norway
Re: 14 DSP -vs- 15 DSP system
And, if i am not mistaken, all 14DSP cards are second gen?
A positive attitude may not solve all your problems, but it will annoy enough people to make it worth the effort.
Re: 14 DSP -vs- 15 DSP system
yes, that's correct!
Re: 14 DSP -vs- 15 DSP system
If only using scope as external hardware.. Not using asio drivers, will 1gen board have higher latency then pulsar2?
Higen
http://www.scopeportal.com - Community Sonic Core SCOPE Plugins and Devices
http://www.higen.org
http://www.scopeportal.com - Community Sonic Core SCOPE Plugins and Devices
http://www.higen.org
Re: 14 DSP -vs- 15 DSP system
if it's by itself, yes!
but latency only applies to sequencers and the like. all Scope cards, regardless of age are realtime in stand alone mode.
but latency only applies to sequencers and the like. all Scope cards, regardless of age are realtime in stand alone mode.
Re: 14 DSP -vs- 15 DSP system
Thank you!
Great to know!
What could be nice is to get screenshot (both sides) of both 14-dsp and 15-dsp so we can see the different. I have asked google for such, but he is not giving me any proper picture of 2gen card on the back!
Rgs
Egil
Great to know!
What could be nice is to get screenshot (both sides) of both 14-dsp and 15-dsp so we can see the different. I have asked google for such, but he is not giving me any proper picture of 2gen card on the back!

Rgs
Egil
Higen
http://www.scopeportal.com - Community Sonic Core SCOPE Plugins and Devices
http://www.higen.org
http://www.scopeportal.com - Community Sonic Core SCOPE Plugins and Devices
http://www.higen.org
Re: 14 DSP -vs- 15 DSP system

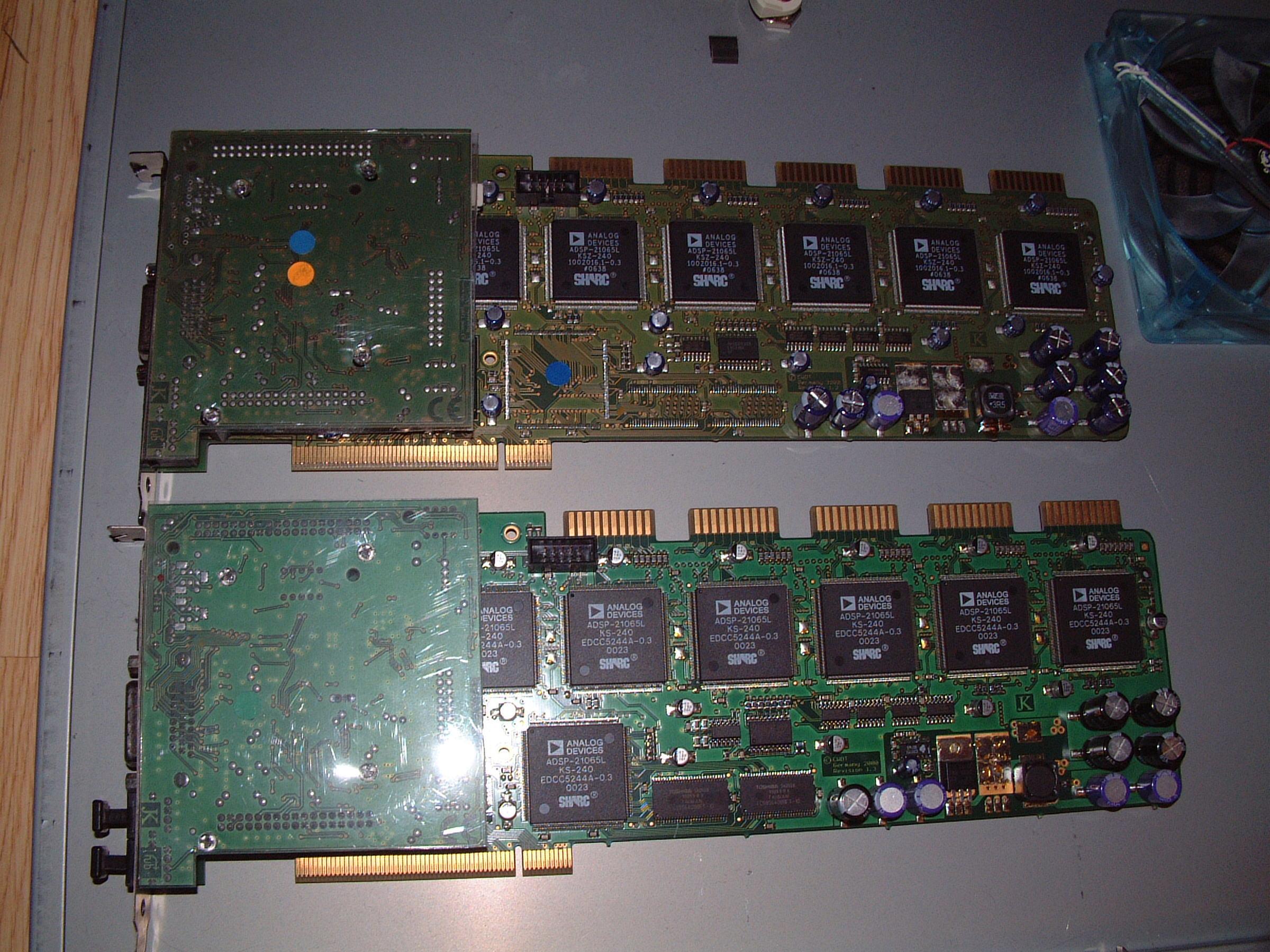

Difference is easy to spot.Missing dsp on the upper side of the card.
- Attachments
-
- 100_2695.JPG (397.15 KiB) Viewed 2206 times
Re: 14 DSP -vs- 15 DSP system
Thanks a lot!! that means basically all picture out on google is actually the 1.gen card.. even its adds. for 2.gen
Now i know that i am about to get a 1.gen card

Now i know that i am about to get a 1.gen card

Higen
http://www.scopeportal.com - Community Sonic Core SCOPE Plugins and Devices
http://www.higen.org
http://www.scopeportal.com - Community Sonic Core SCOPE Plugins and Devices
http://www.higen.org
Re: 14 DSP -vs- 15 DSP system

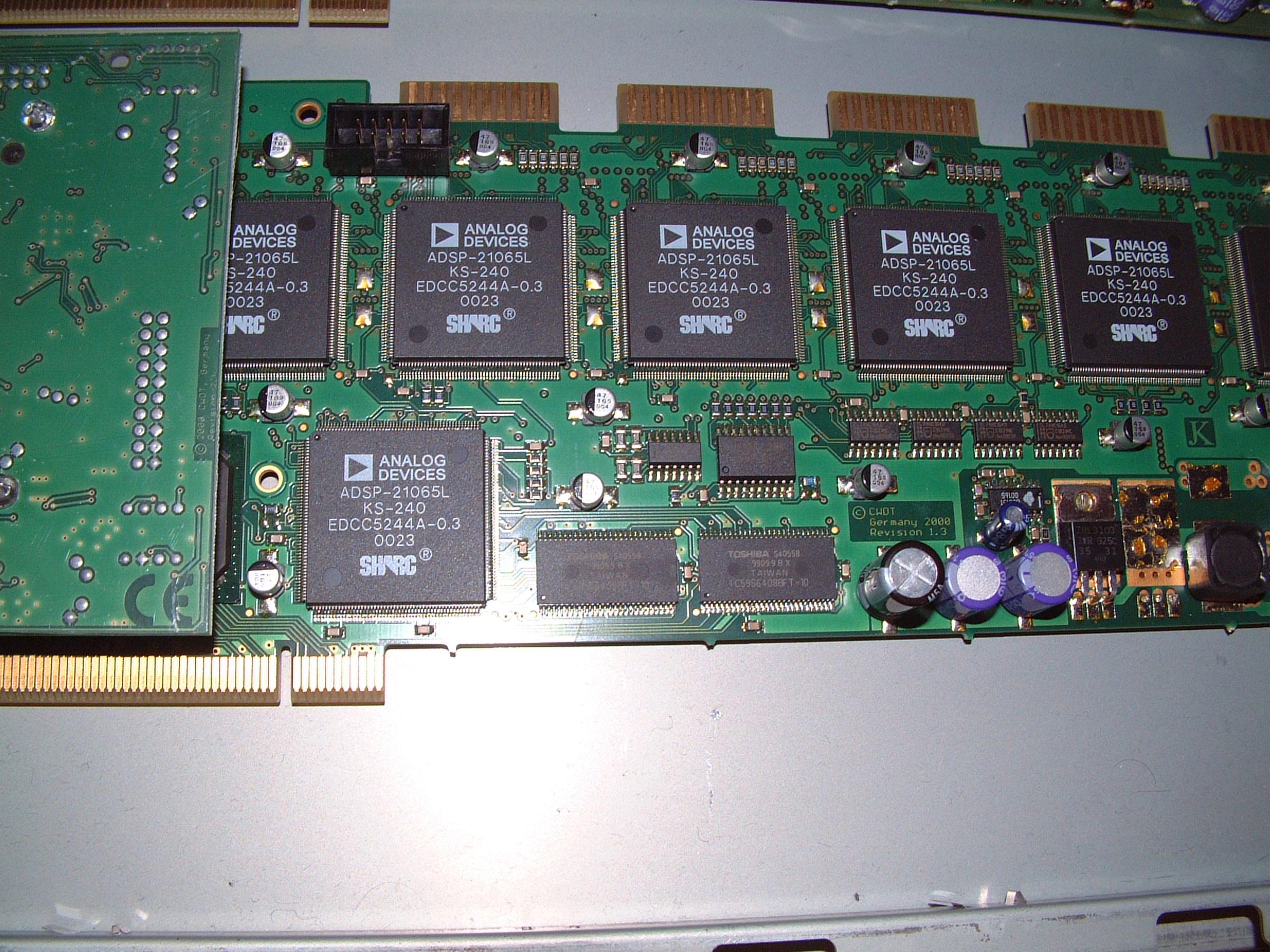

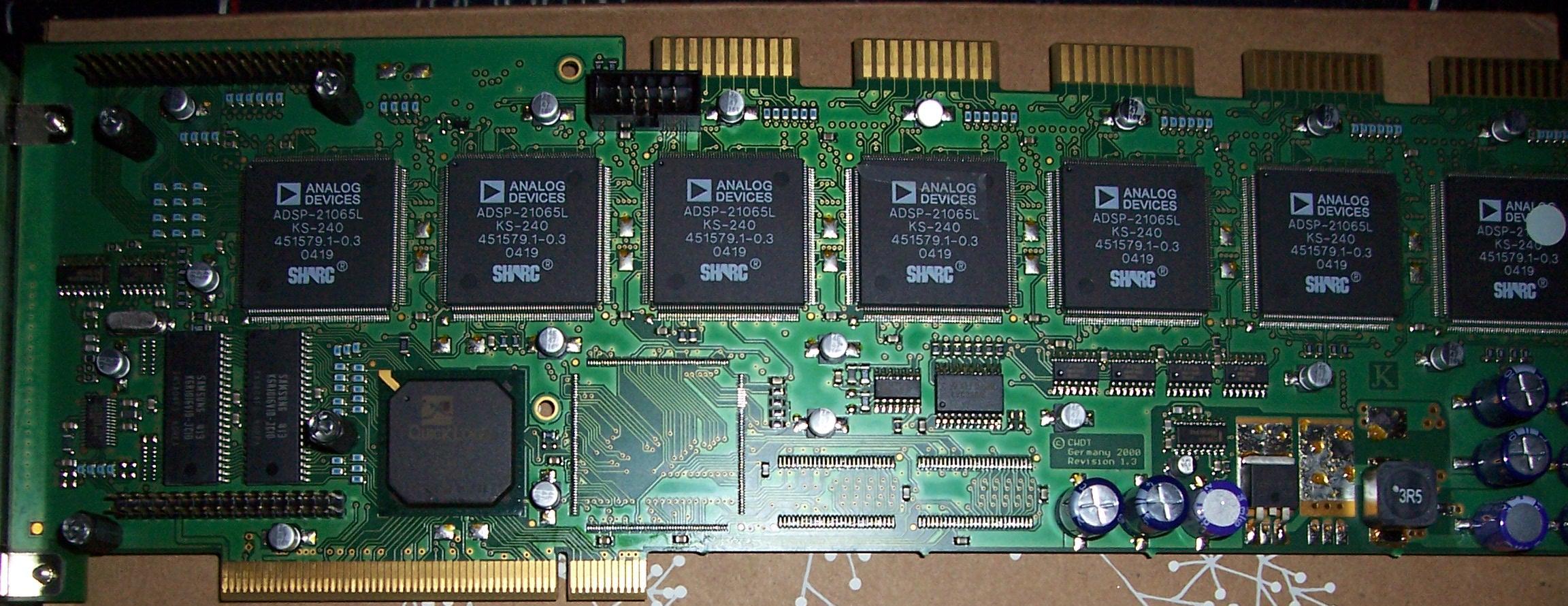

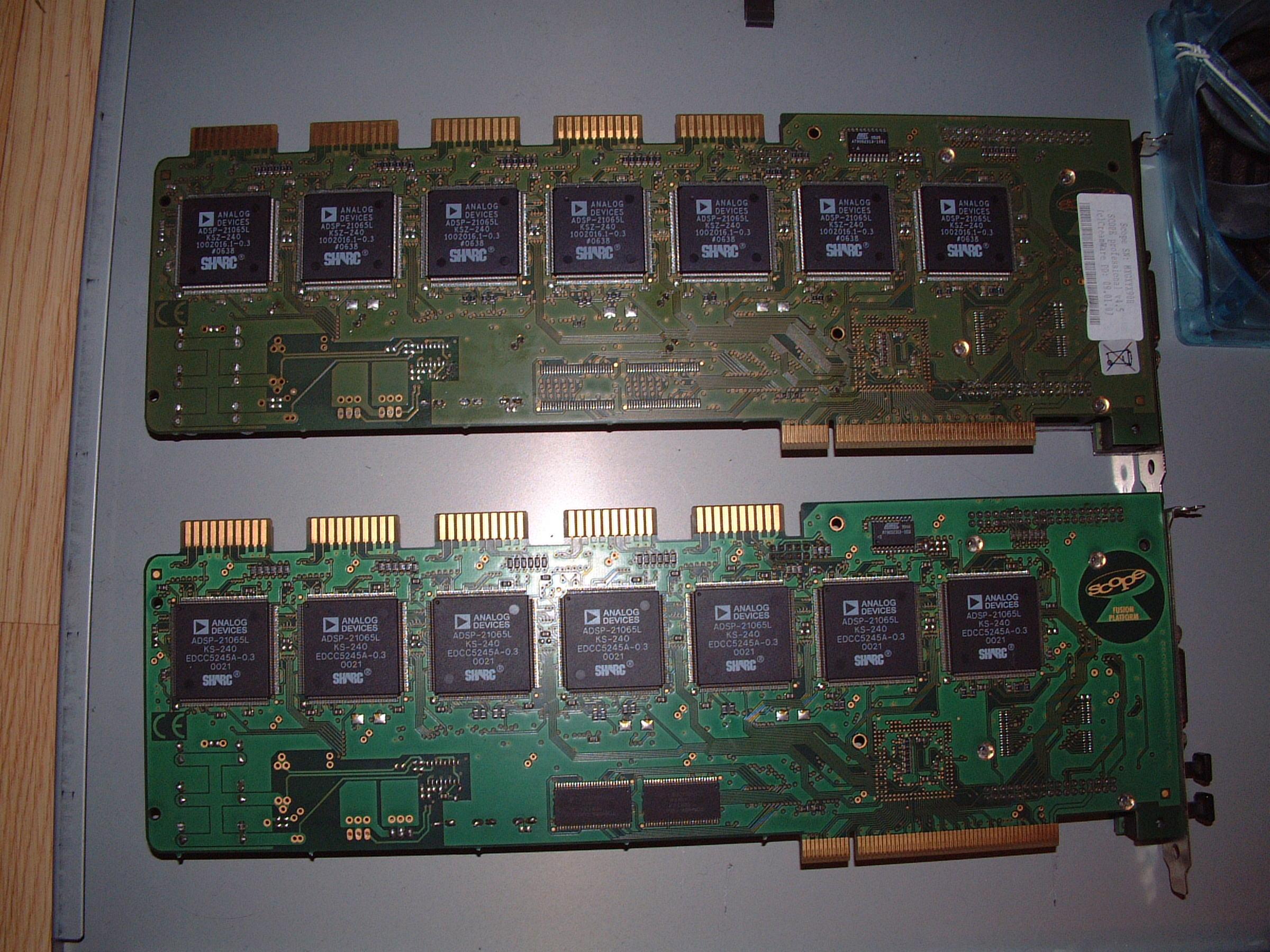

I have both version, they look identical, but the 15 DSP card have 1 extra DSP chip and 2xram on both side.
- Attachments
-
- DSCF0339-jpg.JPG (658.04 KiB) Viewed 2196 times
-
- DSCF0338-jpg.JPG (623.9 KiB) Viewed 2196 times
-
- DSCF0334-jpg.JPG (623.45 KiB) Viewed 2196 times
Re: 14 DSP -vs- 15 DSP system
Thanks a lot for that..!!
..and just for clarification, gen 1 cards behave like gen 2 cards (ULLI) if there is a gen 2 card in the system?
..if so, will the IO on the gen 1 cards behave like gen 2 cards as well (ULLI)?
Cheers.
..and just for clarification, gen 1 cards behave like gen 2 cards (ULLI) if there is a gen 2 card in the system?
..if so, will the IO on the gen 1 cards behave like gen 2 cards as well (ULLI)?
Cheers.
Re: 14 DSP -vs- 15 DSP system
yes, if there is a gen 2 card, then the system will do low latency(down to 2-3ms, i use 4ms).
the gen 1 card will decrease avaialble pci resources.....
the gen 1 card will decrease avaialble pci resources.....
- next to nothing
- Posts: 2521
- Joined: Mon Jul 29, 2002 4:00 pm
- Location: Bergen, Norway
Re: 14 DSP -vs- 15 DSP system
I would really recommend to keep them all 2.gen. the extra cash is worth it.
A positive attitude may not solve all your problems, but it will annoy enough people to make it worth the effort.
